Switches, Multiplexers and Matrix

Multiplexers

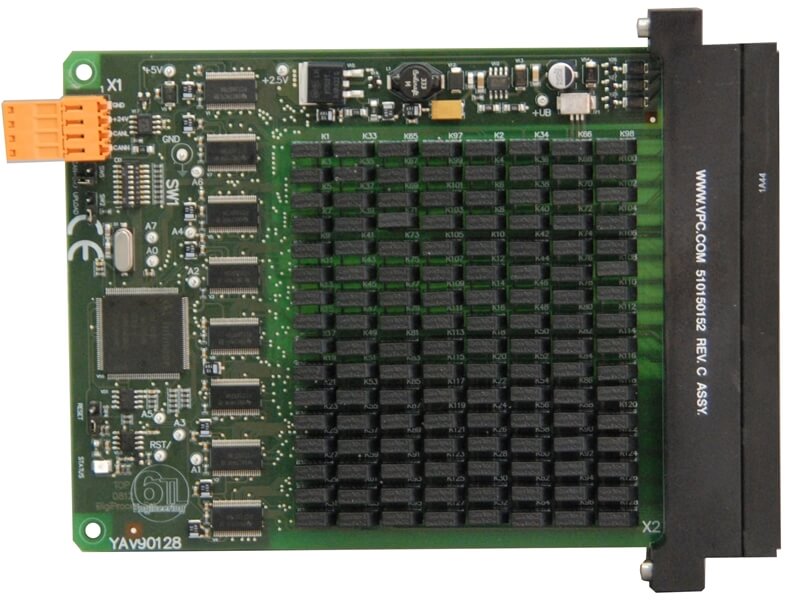

YAV90128

6200.27

128-Channel Multiconfiguration Multiplexer/Matrix Switch

• 128 SPST relays ITA Config.
•  250 mA / 100VAC/DC
• CAN bus controlled
• Form B

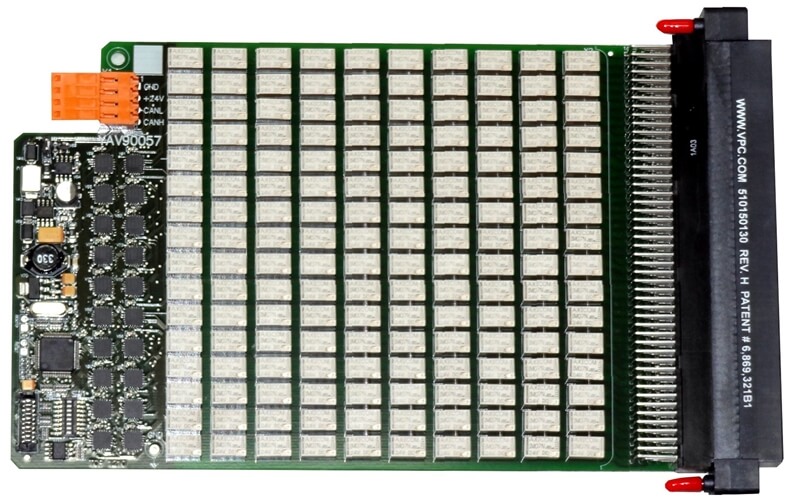

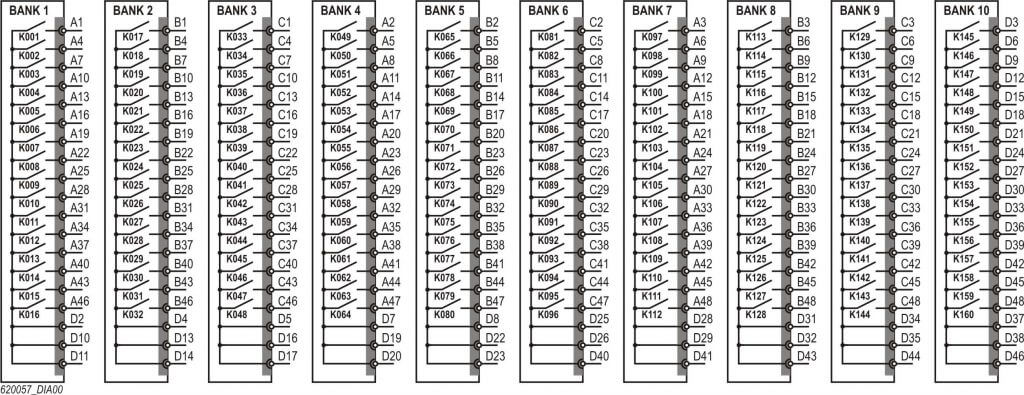

YAV90057

6200.57

160-Channel, 2A Relay Multiconfiguration Multiplexer/Matrix Switch

• 2A carry current / 250VAC
• 160 SPST Relays
• Max. switching 62,5 VA
•  CAN bus controlled
• Form L

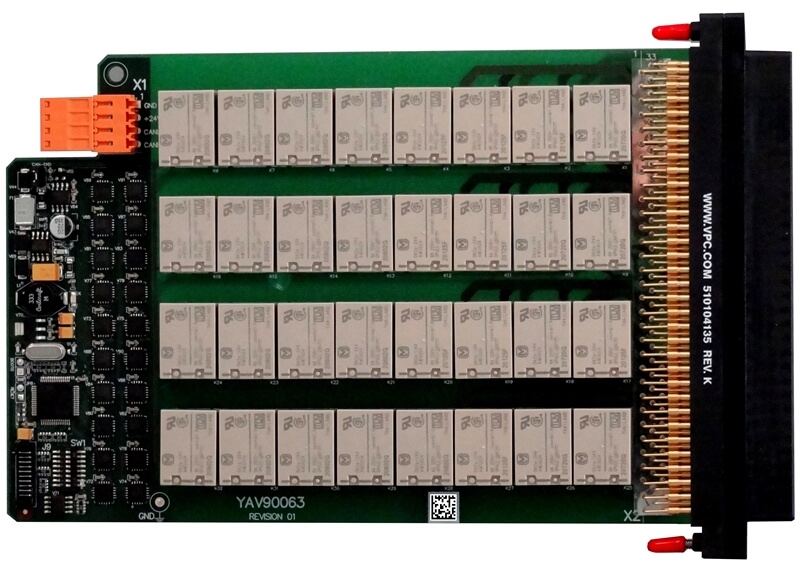

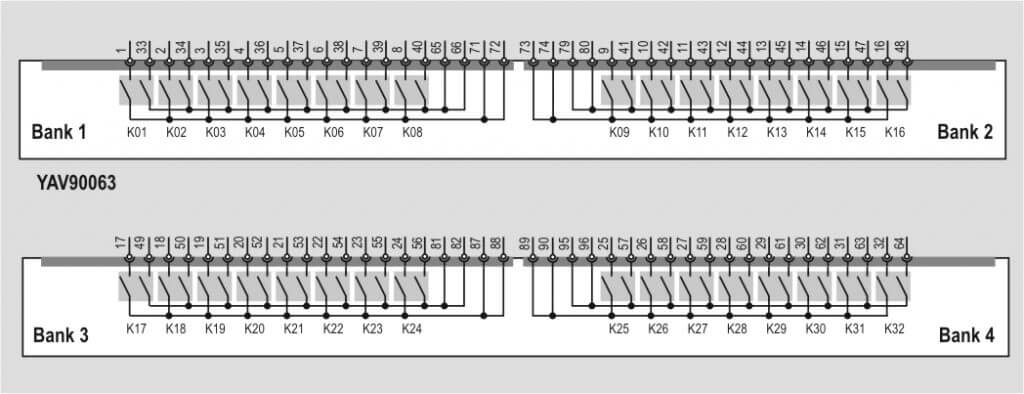

YAV90063

6200.63

4x 8x 5A Double Pole Mux

• 4 banks of 8 relays
• 5A 250VAC Switching current
• 32 DPST Relays
• Max. switching 62,5 VA
• CAN bus controlled
• Form L

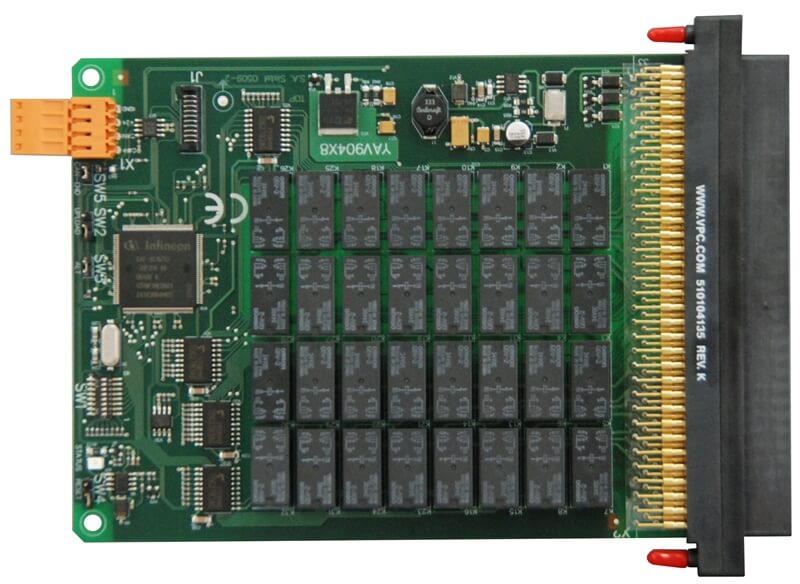

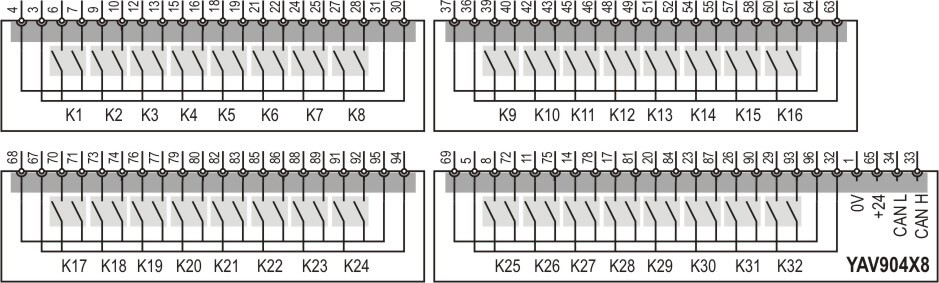

YAV904X8

6200.20

32-Channel (2-Wire) Multiconfiguration Multiplexer/Matrix Switch

• 2A carry current / 125VAC
• CAN bus controlled
• Form A

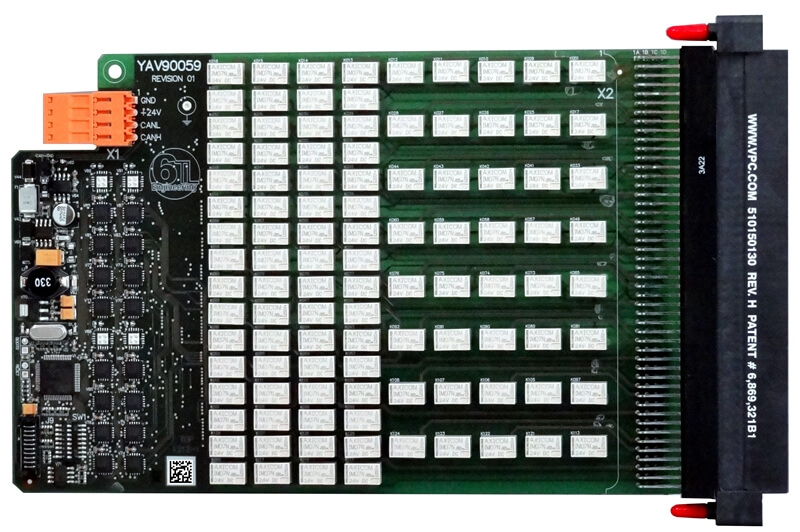

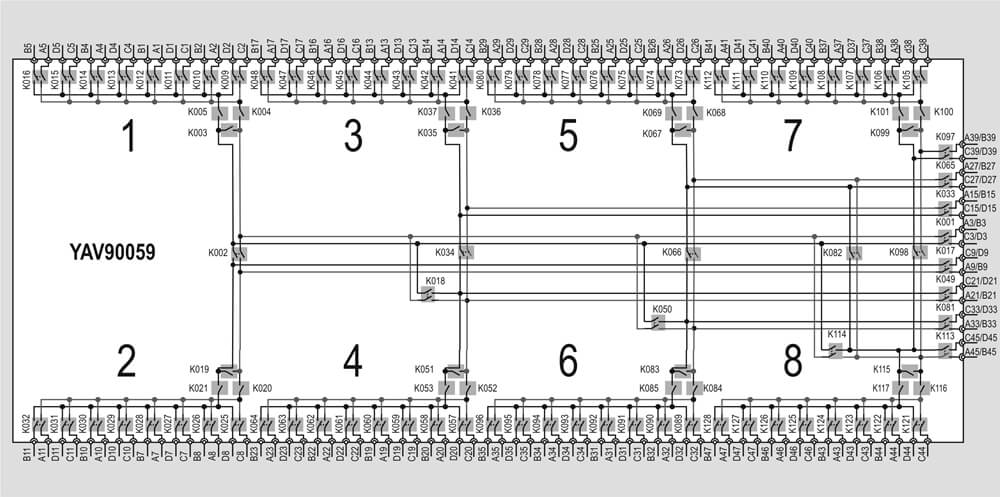

YAV90059

6200.59

64-Channel (2-Wire 2-Amp) Multiconfiguration Multiplexer

• 8 Banks 16 128-Channel 1 Pole
• 8 Banks 8 64-Channel 2 Poles
• 104 DPST relays
• 2A / 250VAC
• Max. switching 62,5 VA
• CAN bus controlled
• Form L

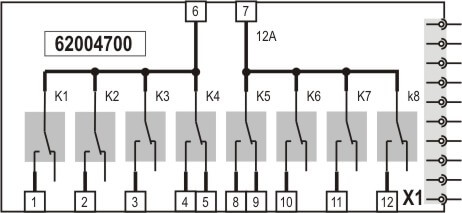

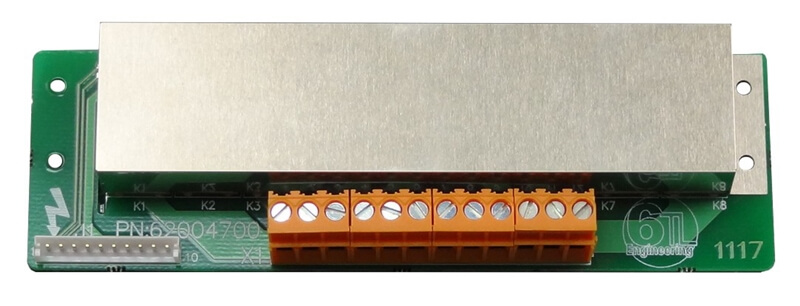

H62004700

6200.47

8-Channel High-Power General-Purpose Relay Switch

• 8x SPST 24VDC relays
• 12A switching / 250VAC
• 2 trees x4 SPST relays
• Form F

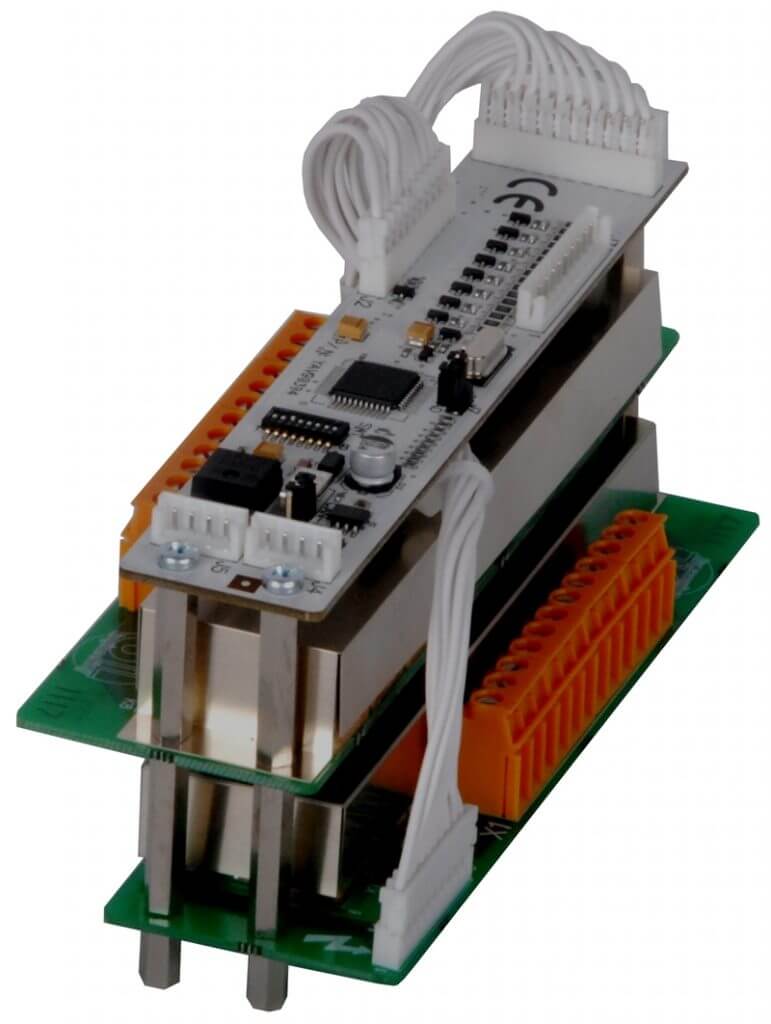

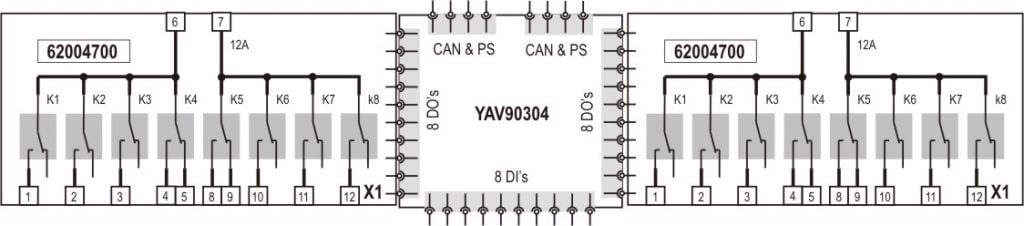

H620047C2

6200.47

16-Channel High-Power General-Purpose Relay Switch

• 4 trees x4 SPST 24VDC relais
• 12A switching / 250VAC
• YAV90304 CAN bus control
• Form H
