Flex Modules

ISP (In System Programming)

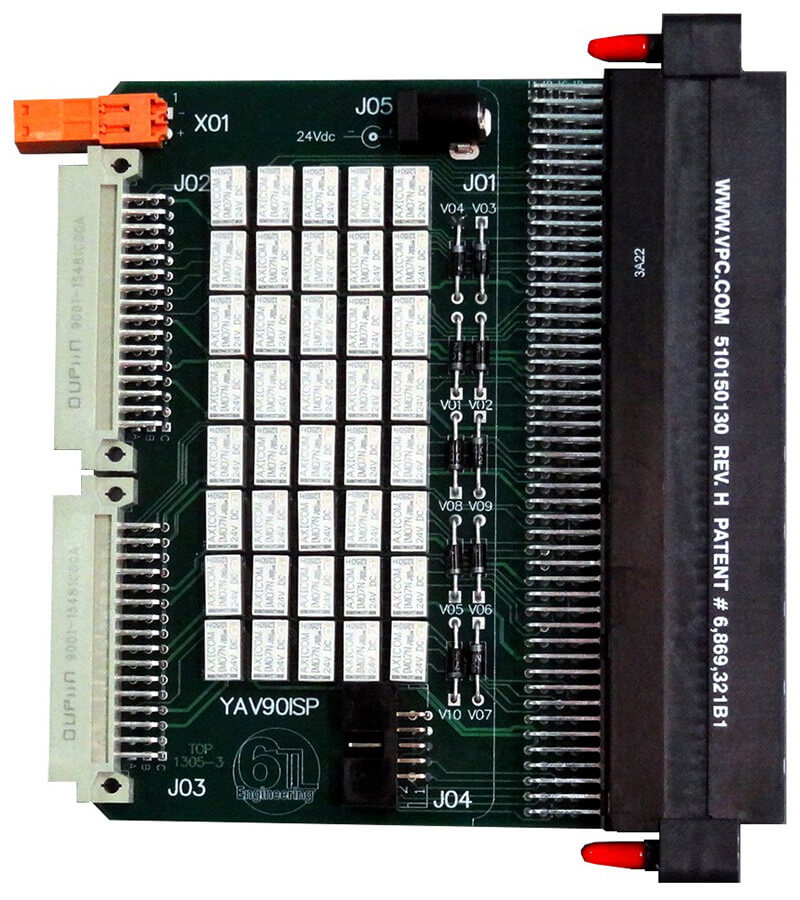

YAV90ISP ISP (In System Programming)

YAV90ISP

6200.02

8-Sites ISP & I2C/SPI Interface
  • Ethernet & RS232
  • Digital I/O control
  • Fixture friendly VPC
  • Relay barrier included
  • Multiplexed option
  • Less than 300 mm in active wires length

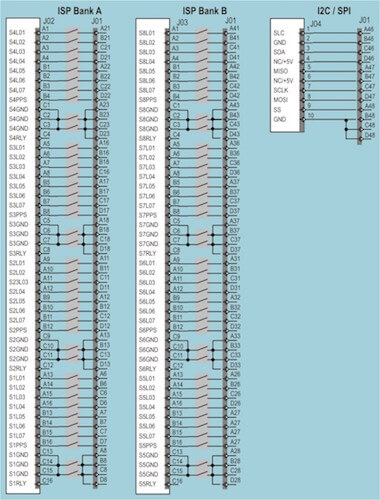

YAV90ISP ISP (In System Programming) Diagram

Communications Interface

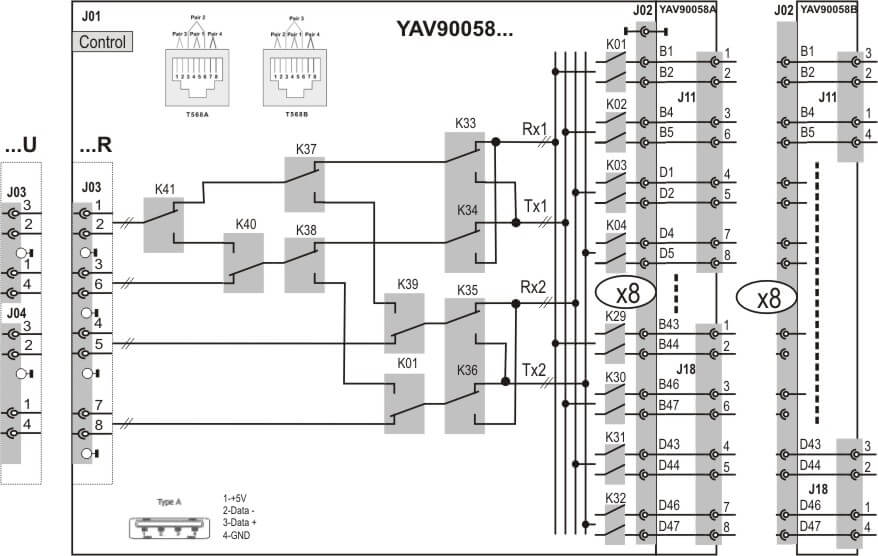

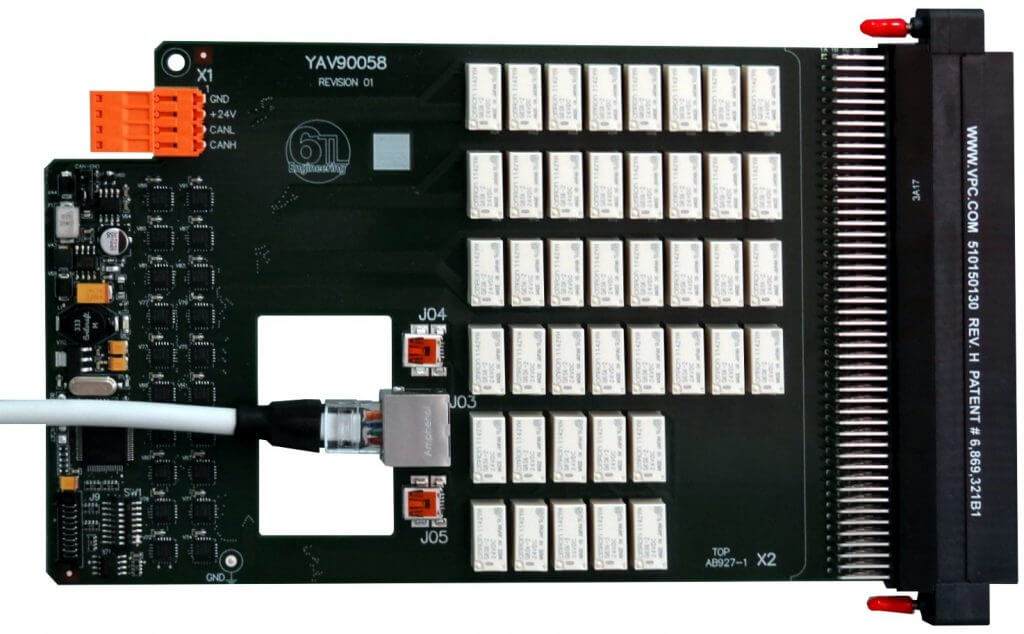

YAV90058 communications interface

YAV90058

6200.58

Giga-Bit Data Communications Multiplexer
  • Suitable for 1GigaBit Ethernet, LVDS, RS232, USB and Telephony switching applications
  • CAN bus controlled wide differential Bandwidth multiplexer for Differential Signals
  • 100R Differential Impedance
  • Required Quadrapaddle Module 510 151 105 (ITA) or ITA Interface boards
YAV90058 communications interface

Pneumatic Sub-System

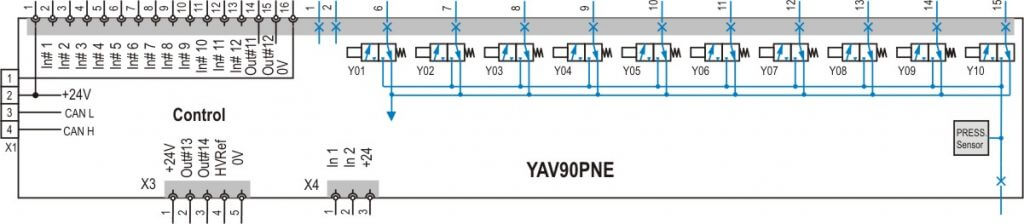

YAV90PNE pneumatic sub system

YAV90PNE

6200.30

10 pneumatic electrovalves
  • 10x feedback digital inputs
  • 2 Free 24VDC digital inputs
  • 2 Free 24VDC digital outputs
  • 1 Analog Output (0…+10VDC)
  • Preasure sensor integrated
  • CAN bus control
  • Form A
YAV90PNE pneumatic sub system

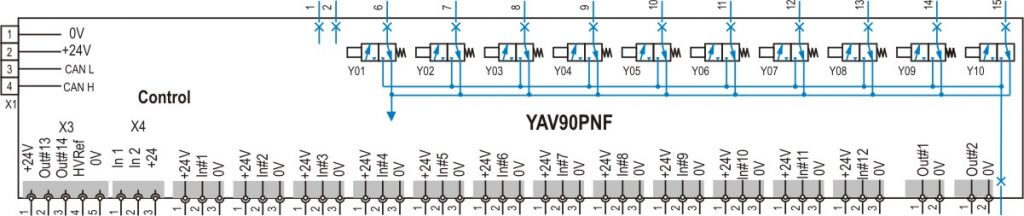

YAV90PNF pneumatic sub-system

YAV90PNF

6200.30

10 pneumatic electrovalves
  • 10x feedback digital inputs
  • 2 Free 24VDC digital inputs
  • 2 Free 24VDC digital outputs
  • 1 Analog Output (0…+10VDC)
  • Pressure sensor integrated
  • CAN bus control
  • Form A without VPC connector
YAV90PNF pneumatic sub-system

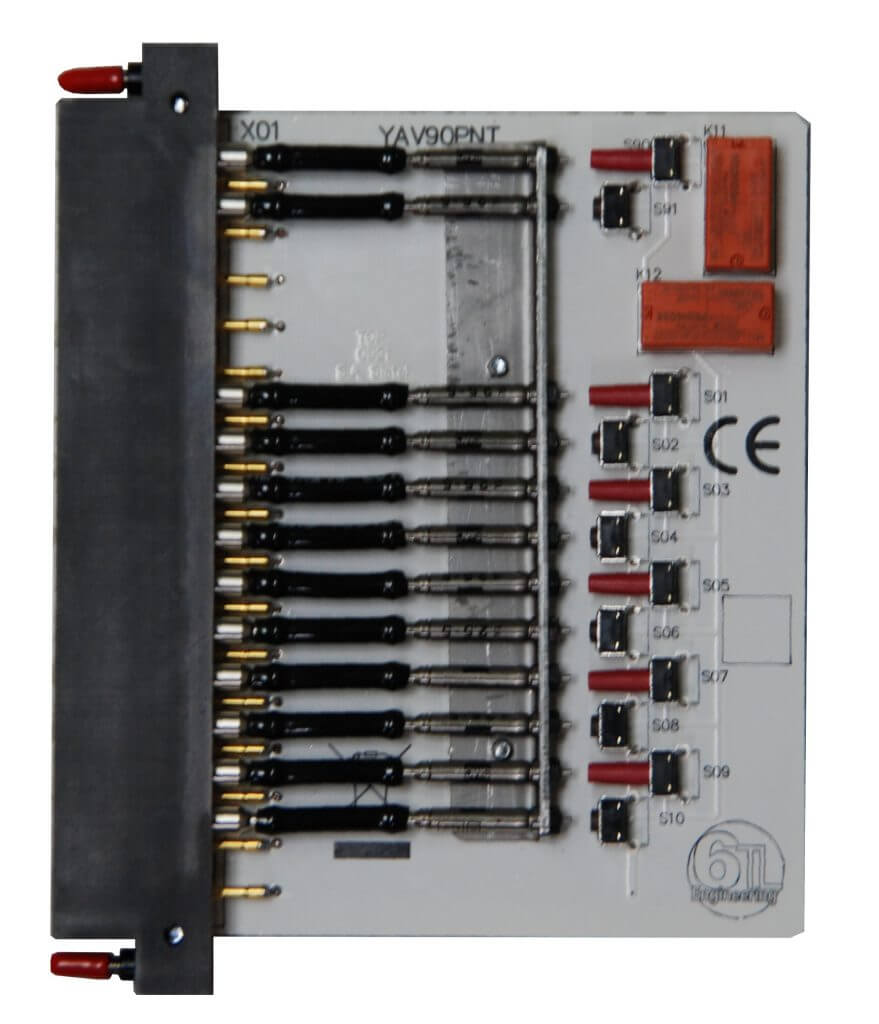

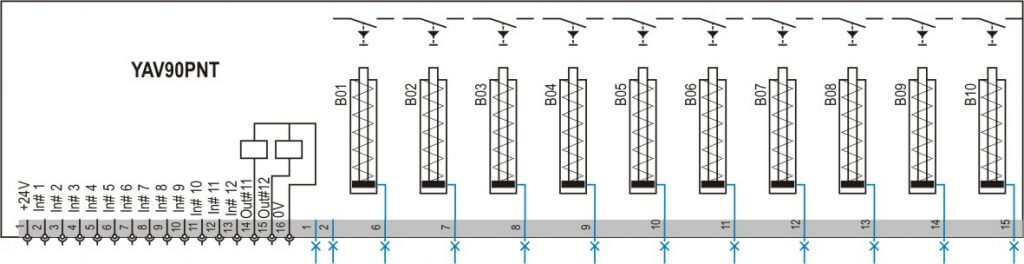

YAV90PNT pneumatic sub-system

YAV90PNT

6200.45

Pneumatics self test board
  • 12 jacks with feedback switch
  • 2 relays
  • ITA Connector module
  • Form C
YAV90PNT pneumatic sub-system
