Flex Modules

RF Multiplexers

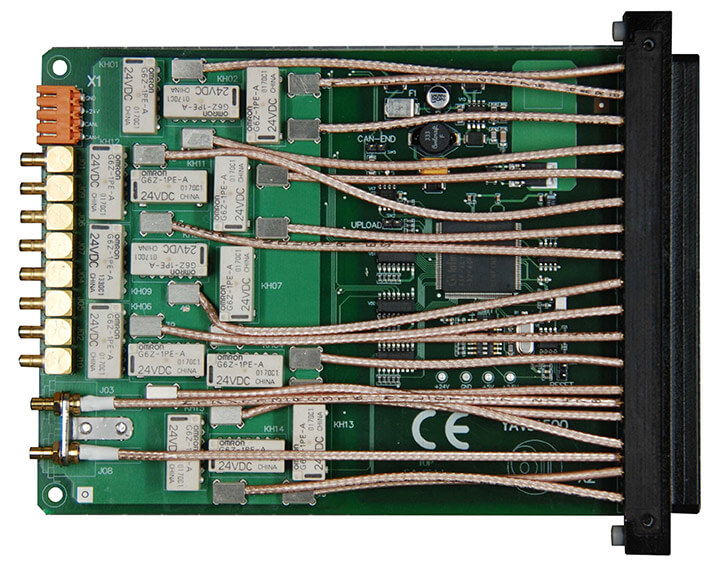

YAV91500 RF Multiplexer

YAV91500

6200.17

2,5 GHz 50 Ohm SMB Multiplexer
  • 5x (1×4) Mux. +2x Pass trhow
  • 30VAC/DC, 10W Max
  • Max carry current 500mA
  • Reflective
  • Form A
YAV91500 Diagram
YAV91500 RF Multiplexer

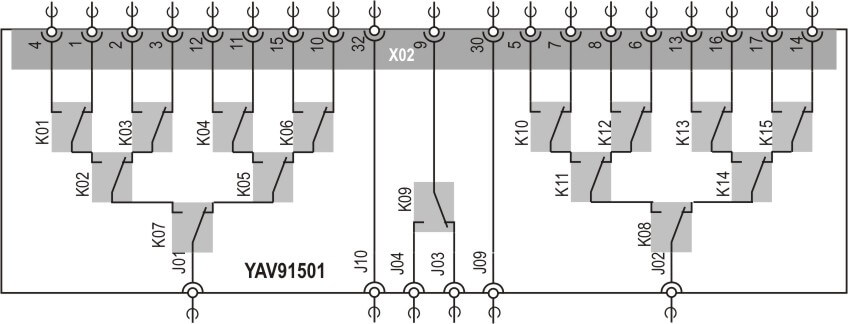

YAV91501

6200.17

2,5 GHz 50 Ohm SMB Multiplexer
  • 2x (1×8) Mux. + 1×2 +2x Pass through
  • 30VAC/DC, 10W Max
  • Max carry current 500mA
  • CAN bus controlled
  • Reflective
  • Form A
YAV91501 RF Multiplexer

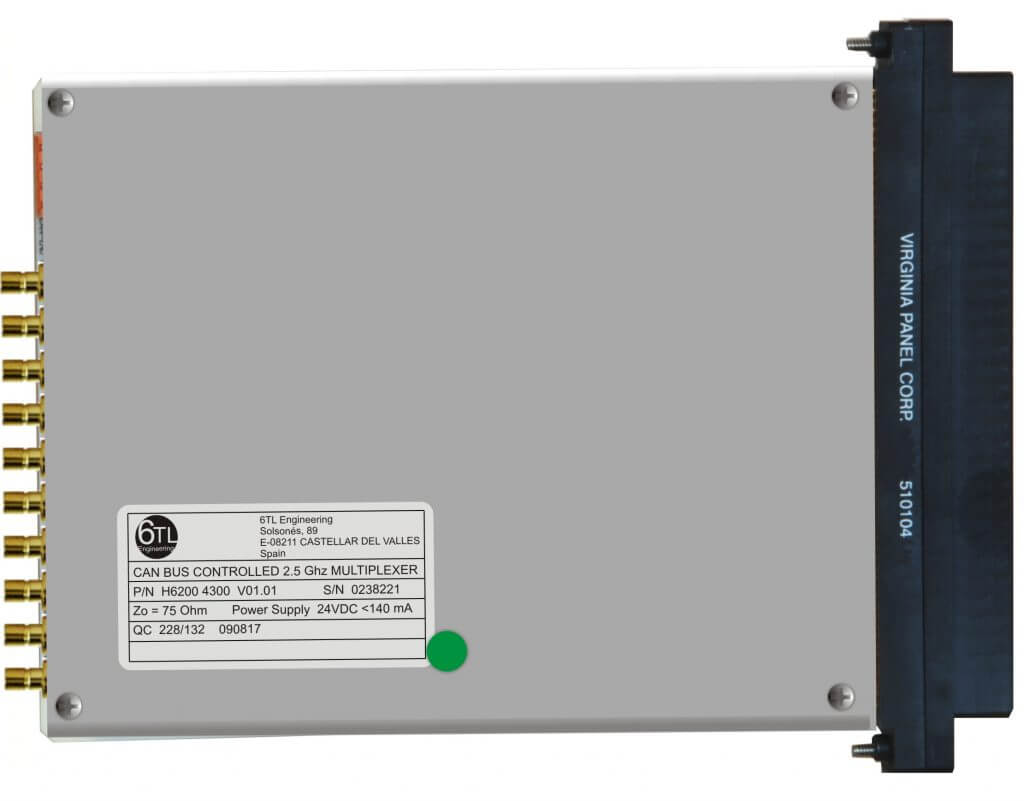

YAV91750 RF Mulitplexer

YAV91750

6200.17

2,5 GHz 75 Ohm SMB Multiplexer
  • 5x (1×4) Mux. +2x Pass through
  • 30VAC/DC, 10W Max
  • Max carry current 500mA
  • CAN bus controlled
  • Reflective
  • Form A
YAV91500 Diagram

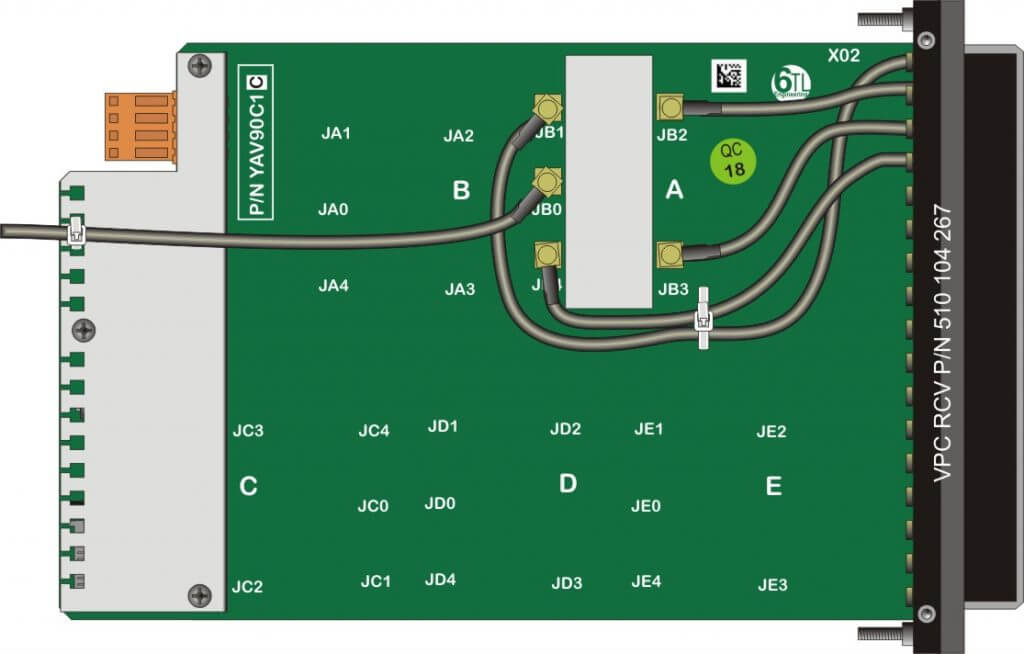

YAV90G10A MCX multiplexer

YAV90G10A

6200.07

6 GHz 50 Ohm MCX Multiplexer
  • 1 to 4-ITA
  • 30VAC/DC, 10W Max
  • Max carry current 500mA
  • Disipative
  • Form A
RF Multiplexer - YAV90G10B

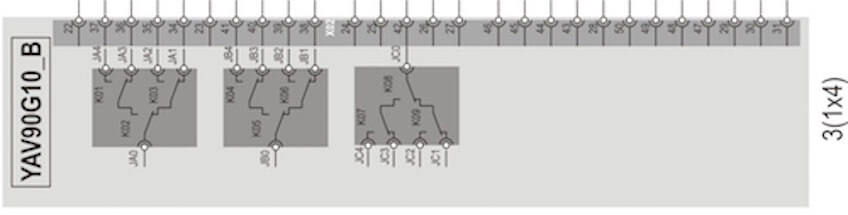

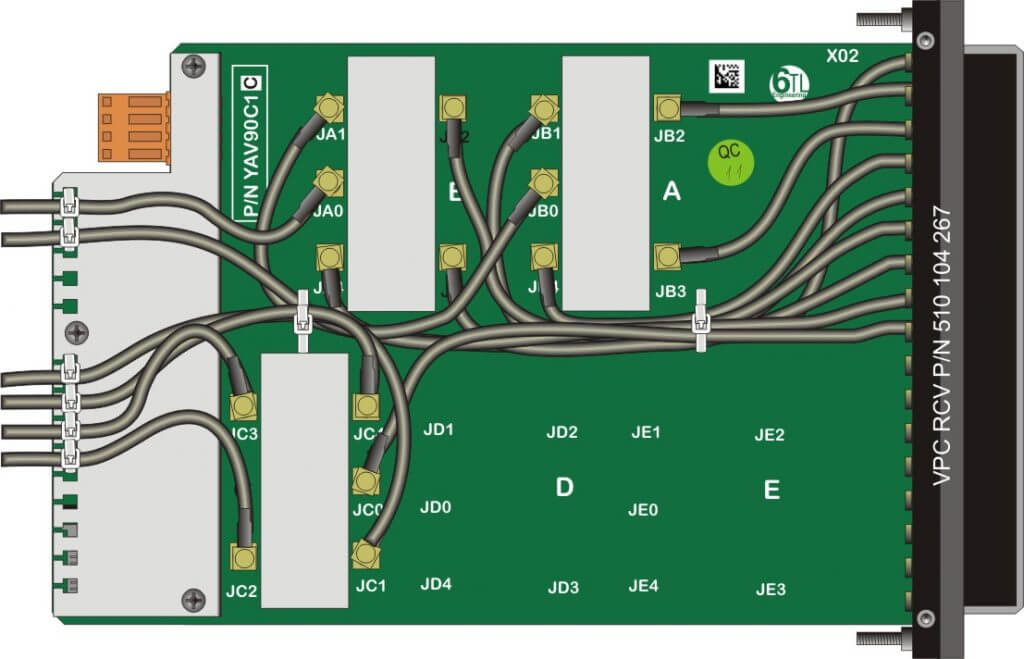

YAV90G10B Multiplexer

YAV90G10B



  • 2x (1 to 4-ITA)
  • 1x (4 to 1-ITA)
RF Multiplexer - YAV90G10B

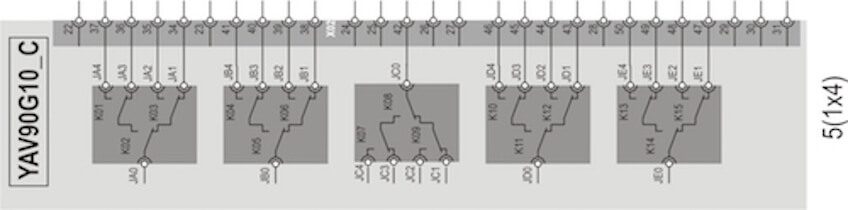

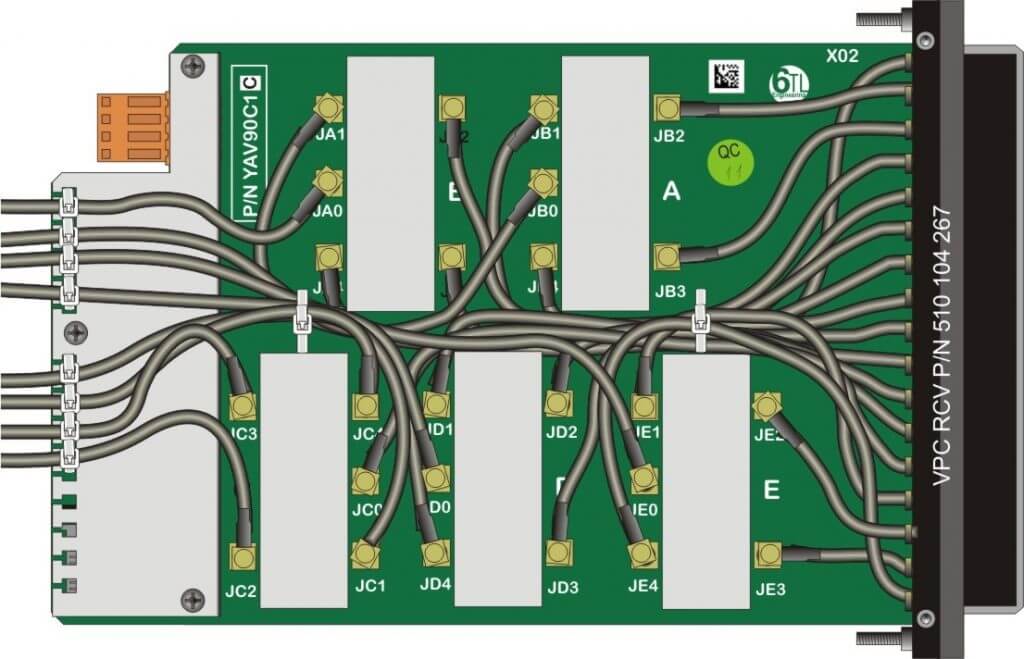

YAV90G10C Multiplexer

YAV90G10C



  • 4x (1 to 4-ITA)
  • 1x (4 to 1-ITA)
RF Multiplexer - YAV90G10C

More RF Products…
