Flex Modules

Satellite TV & HDMI

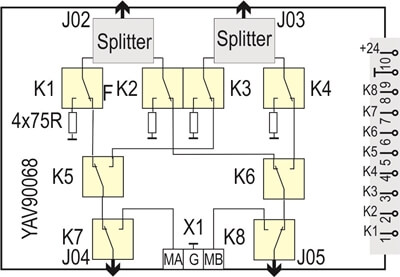

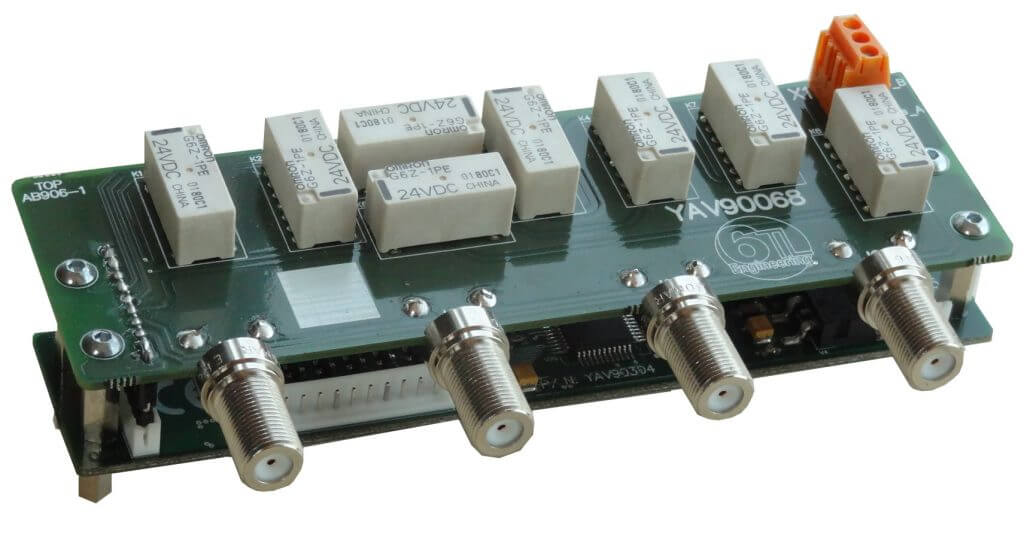

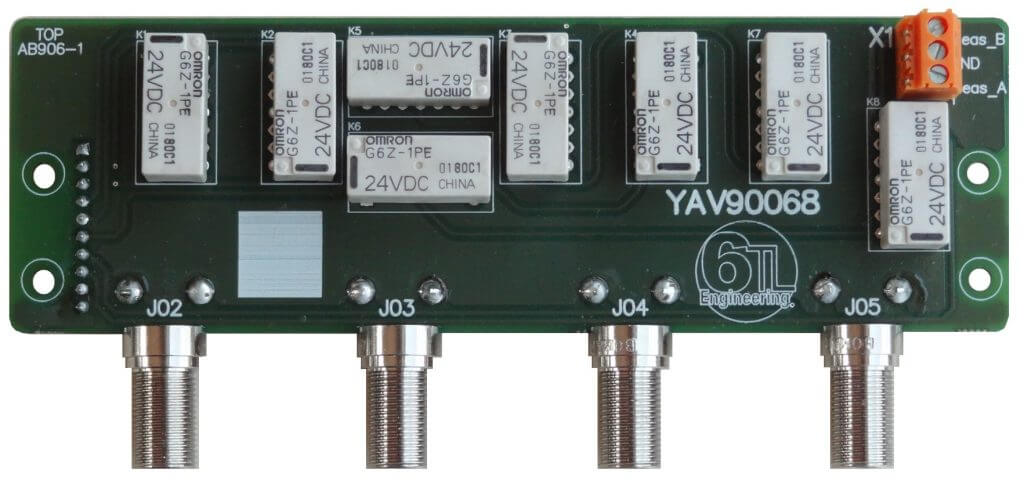

Satellite TV & HDMI Flex Modules - YAV90068

YAV90068

6200.68

L Band 2×2 Matrix
  • 2,5 GHz (Satellite B. Switch)
  • 75-Ohm F Connector
  • Standby dissipative switch
  • Dual DC polarization signal and Measurement
  • PNP 24VDC control port
  • Form F
Satellite TV & HDMI Flex Modules - YAV90068
Satellite TV & HDMI Flex Modules - YAV90068C

YAV90068C

6200.68

L Band 2×2 Matrix
  • 2,5 GHz (Satellite B. Switch)
  • 75-Ohm F Connector
  • Standby dissipative switch
  • Dual DC polarization signal and Measurement
  • CAN Bus controlled
  • Form F
Satellite TV & HDMI Flex Modules - YAV90068C

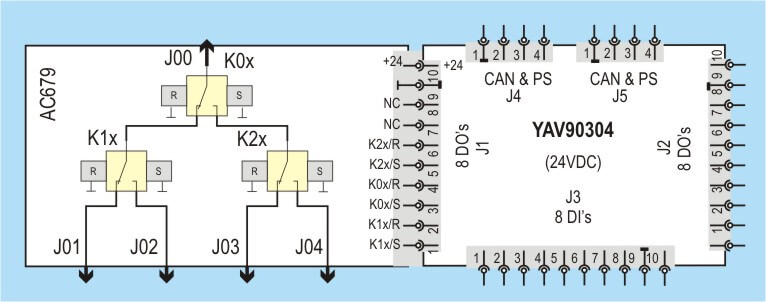

AC679

AC679

8000.61

1-to-4 HDMI Multiplexer
  • Standard HDMI Sockets
  • 24VDC PNP contro
  • Optional CAN bus control w/YAV90304
Satellite TV & HDMI Flex Modules - AC679
YAV90304 not included with AC679
