Digital and Analog I/O’s

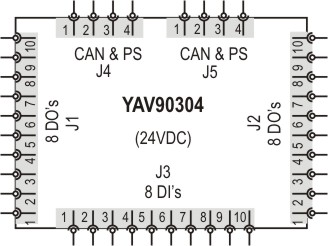

YAV90304

6200.44

16-Outputs, 8-Inputs 24VDC module

• 8x 24VDC PNP Inputs
• 16x 24VDC 600mA PNP Out’s
• CAN Controlled
• Form E

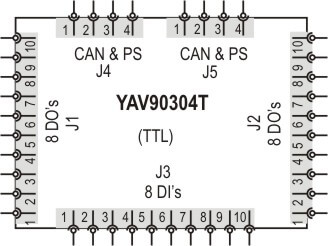

YAV90304T

6200.44

16-Outputs, 8-Inputs TTL module

• 8x TTL Inputs
• 16x TTL Out’s
• CAN bus controlled
• Form E

YAVPMPM1

6200.31

TTL & Power Outs. Interface

• 8 Optorelais AC/DC 350VDC/120mA
• 4 Static PNP outputs 6…35VDC/1,5A
• 2 Static PNP outputs 5…50VDC/500mA
• 2 Relais Form C 250VAC/10A
• Form E
