YAV90070

YAV90070

6200.70

Programmable Power Supply & AC Soft Start
  • 3-Isolated Software Programmable Voltage and Current Regulators
  • Fuse protected Soft Start AC Voltage Input
  • CAN bus control
  • Form E

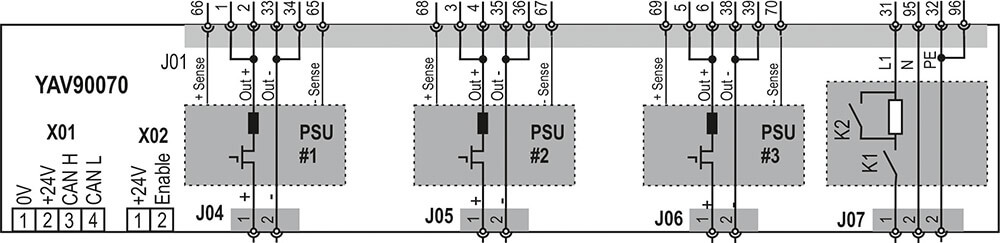

YAV90070 Diagram
Prorammable ATE Power Supplies

Each of the three (PSU#1, PSU#2, PSU#3) DC power supply regulators of the YAV90070 must fulfill the following specs for the Fixed PSUs:

Parameter MinTyp.MaxUnit
DC Input VoltageVDCin840VDC
DC Output Voltage RegulatedVDCout1.21VDCinVDC
DC Output Current RegulatedIDCout0.006.00ADC
Full load Ripple VoltageVR10mVAC
Ripple Voltage FrequencyFR1Mhz
Primary fixed voltage

Recommended Primary Fixed Voltage PSU’s

Example:
To get 24VDC-3ADC select PN. 920002 as Primary Fixed Voltage PSU.

Max. Fix Output Values Regulated Output Values
VDCADCPower WVDCADCP/N
16,57,001001,21...150...6,00920000
27,23,201001,21...260...3,20920002
402,10751,21...390...2,10AD884

The benefit:

  1. Your ATE’s programmable PSU will be installed just behind the receiver
  2. Direct integration with your ATE’s EPO function (Emergency Power Off) thanks to inhibit function
  3. Cost effective solution
