RF Multiplexers

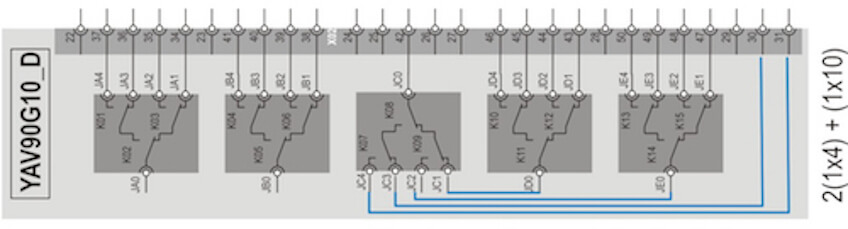

YAV90G10D

• 2x (1 to 4-ITA)
• 1x (1-ITA to 10-ITA)

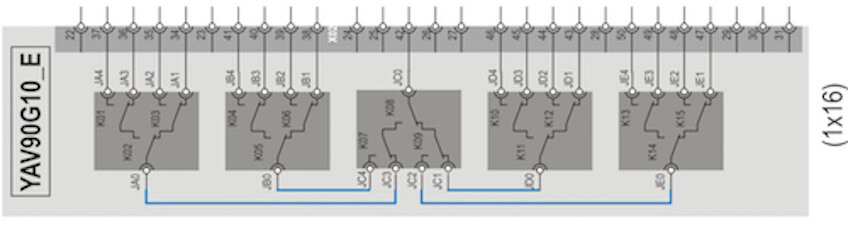

YAV90G10E

• 1-ITA to 16-ITA

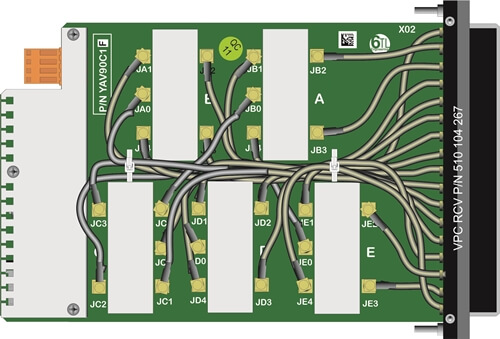

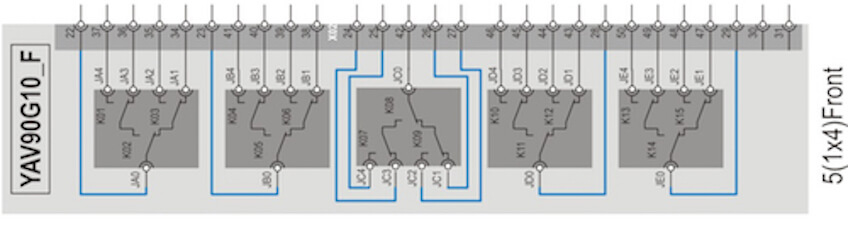

YAV90G10F

• 5x (1-ITA to 4-ITA)

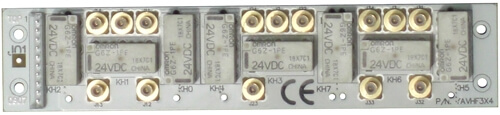

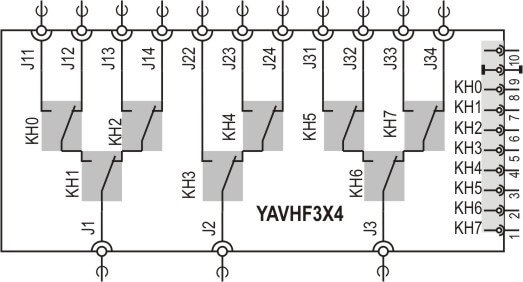

YAVHF3X4
YAVHF3X450

6200.43

2,5 GHz 50 or 75 Ohm SMB Relais Controlled Multiplexer

• 2.5 GHz 50 Ohm SMB
• 1×9 or 2×4 + 1×3 relays
• 30V_AC/DC, 10W Max
• Max carry current 500mA
• Reflective
• Form E

YAVHF3X4C
YAVHF3X4C50

6200.43

2,5 GHz 50 or 75 Ohm SMB Multiplexer

• 1×9 or 2×4 + 1×3 relays
• SMB 50 Ohm coaxial switching
• 30V_AC/DC, 10W Max
• Max carry current 500mA
• CAN controlled
• Reflective
• Form E

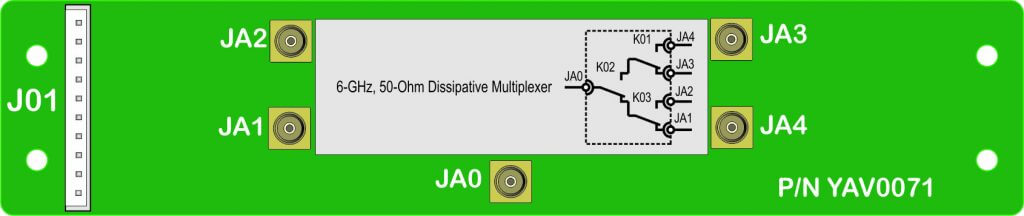

YAV90071

6200.71

6 GHz 50 Ohm relays controlled multiplexer

• 6-GHz 50 Ohm MCX
• 1 to 4 Channels
• 30V_AC/DC, 1W Max.
• Max carry current 310mA
• Relay coil voltage 24V_DC
• Absorptive
• Form E
