Switches 3

Switches, Multiplexers and Matrix

Matrix

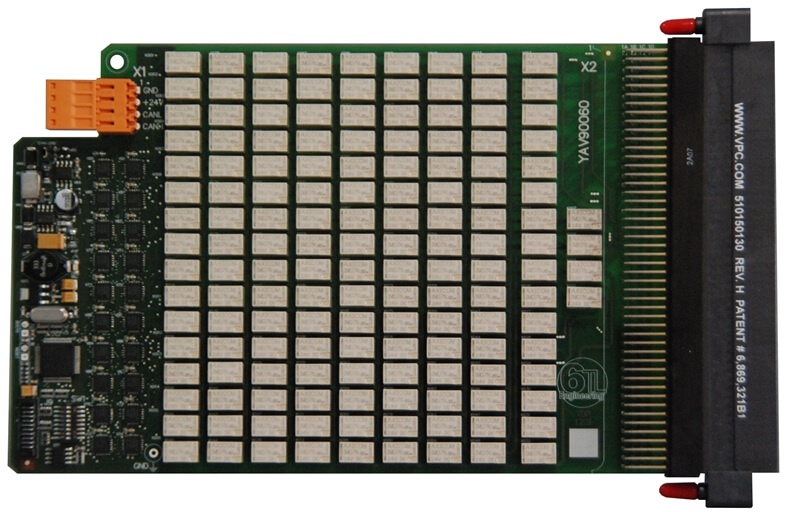

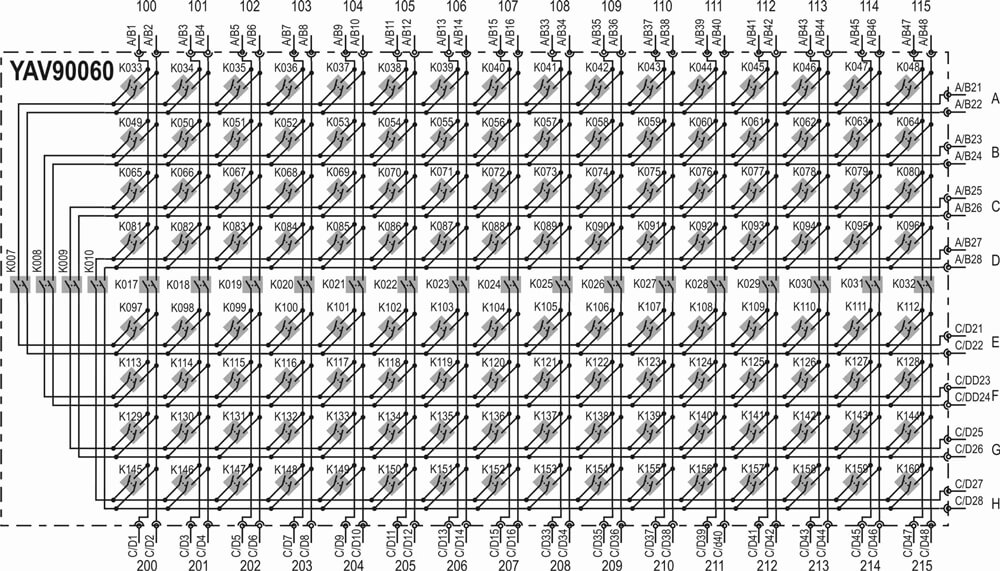

YAV90060 6200.60 2(4x16) Channel (2-Wire 2-Amp) Matrix

YAV90060

6200.60

2(4×16) Channel (2-Wire 2-Amp) Matrix
  • 2A 250VAC Switching
  • 132 SPPR relays
  • Software configurable
  • Form F
YAV90060 6200.60 2(4x16) Channel (2-Wire 2-Amp) Matrix

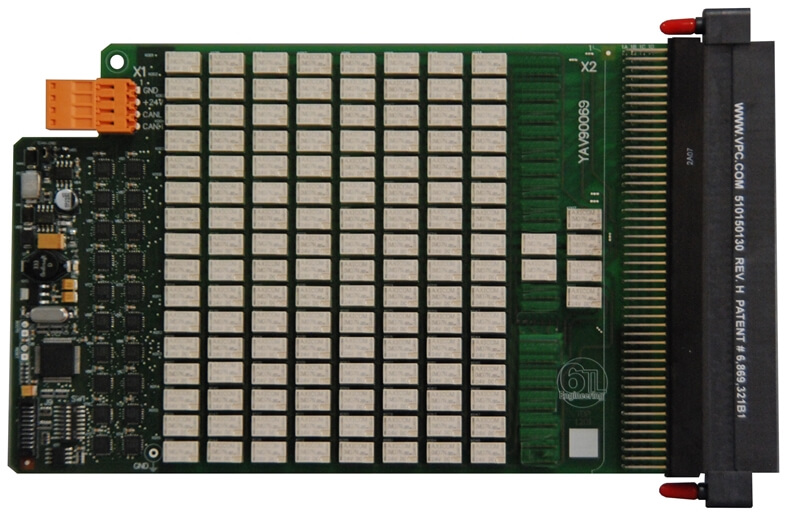

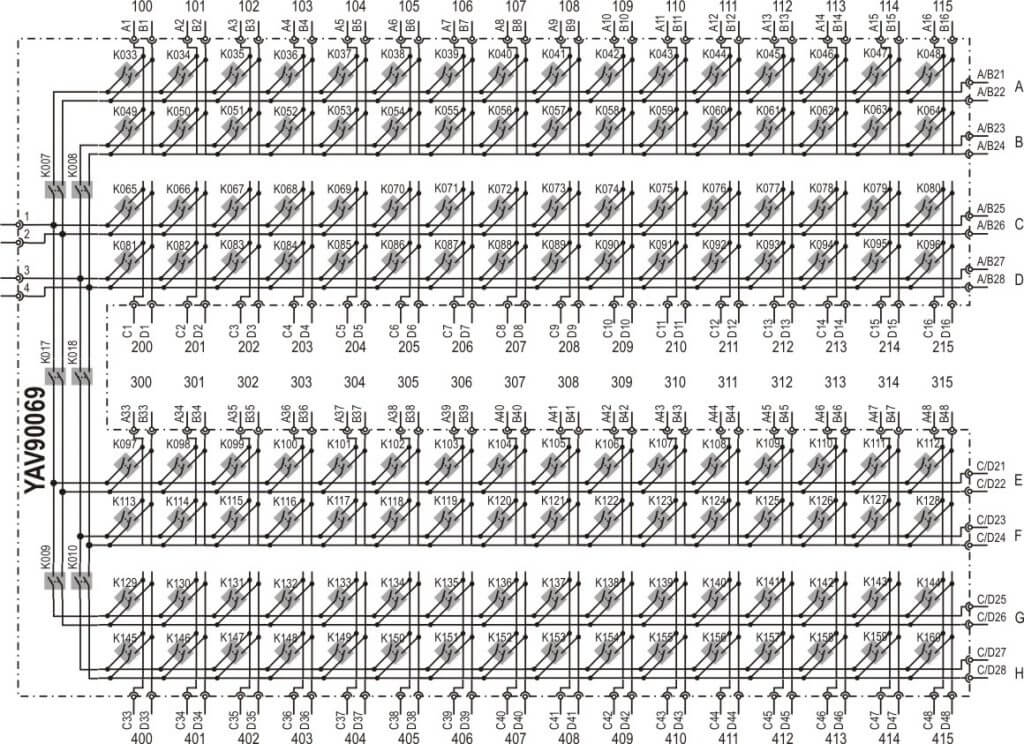

YAV90069 6200.69 64x2 Crosspoints (2-Wire 2-Amp) expandable Matrix

YAV90069

6200.69

64×2 Crosspoints (2-Wire 2-Amp) expandable Matrix
  • Software configurable for:
    1(64×2), 2(32×2)
    1(16×2)+3(16×2)
  • 2A 250V
  • 62.5 VA Max. switching
  • CAN bus controlled
  • Form L
YAV90069 6200.69 64x2 Crosspoints (2-Wire 2-Amp) expandable Matrix

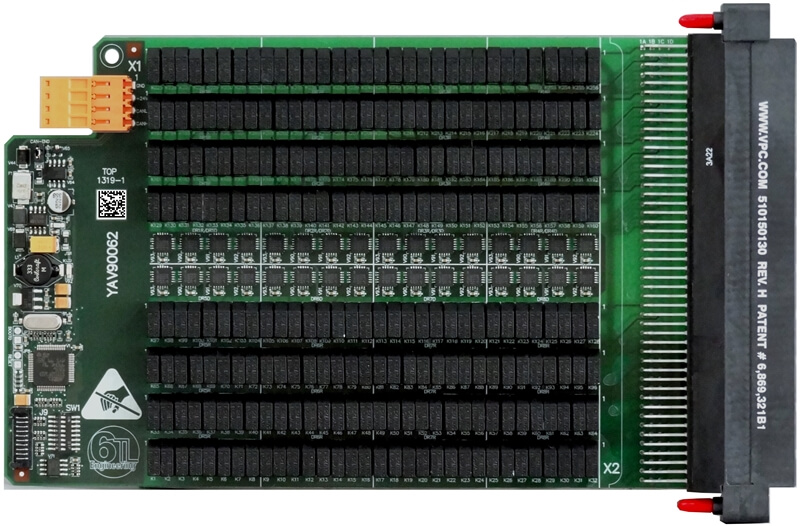

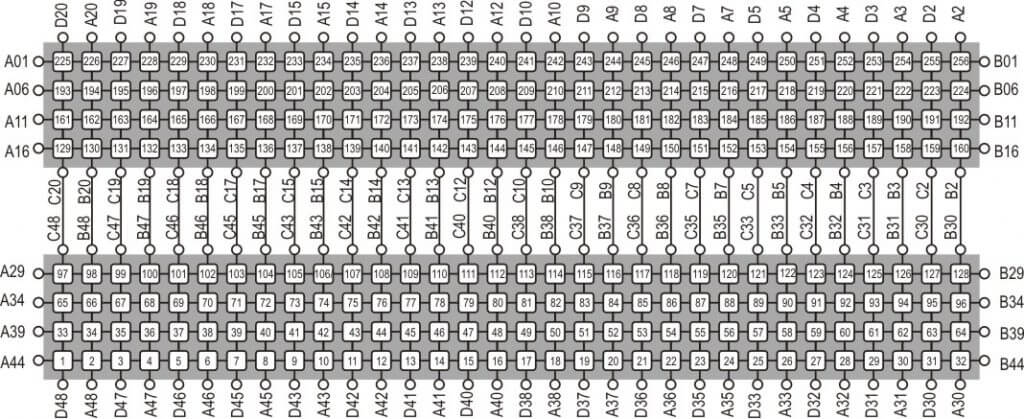

YAV90062 256-crosspoint matrix

YAV90062

6200.62

256-crosspoint matrix
  • Expandable matrix
  • Multi configurable for:
    1-Pole 4×64
    2-Poles 4×32
  • 256 SPST relays
  • 0,5A/200V Max AC/DC peak Res.
  • Max. switching 10 W
  • CAN bus controlled
  • Form L
YAV90062 256-crosspoint matrix

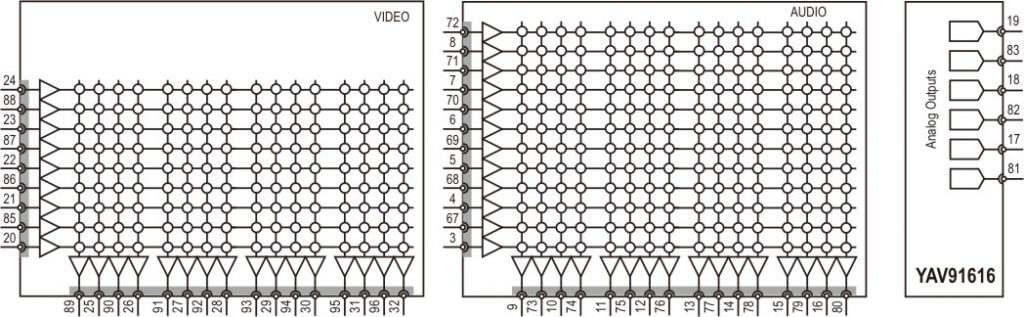

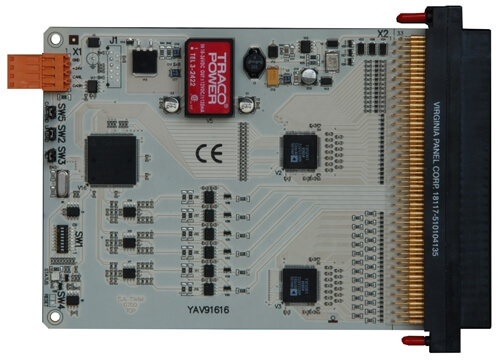

YAV91616 Dual static HF matrix

YAV91616

6200.35

Dual static HF matrix
  • 9×16 Chn’s video matrix
  • 12×16 Chn’s audio matrix
  • 6x Analog Outputs
  • CAN bus controlled
  • Form A
YAV91616 Dual static HF matrix

More Switches, Multiplexers and Matrix…
